Pegelgenerator GF61

Pegelgenerator GF61; Präcitronic Dresden, (ID = 620488) Equipment Pegelgenerator GF61; Präcitronic Dresden, (ID = 741254) Equipment
Pegelgenerator GF61; Präcitronic Dresden, (ID = 741255) Equipment Pegelgenerator GF61; Präcitronic Dresden, (ID = 297285) Equipment
Pegelgenerator GF61; Präcitronic Dresden, (ID = 733695) Equipment Pegelgenerator GF61; Präcitronic Dresden, (ID = 741256) Equipment
Pegelgenerator GF61; Präcitronic Dresden, (ID = 741257) Equipment Pegelgenerator GF61; Präcitronic Dresden, (ID = 1506568) Equipment
Pegelgenerator GF61; Präcitronic Dresden, (ID = 1506569) Equipment Pegelgenerator GF61; Präcitronic Dresden, (ID = 1506570) Equipment
Use red slider bar for more.

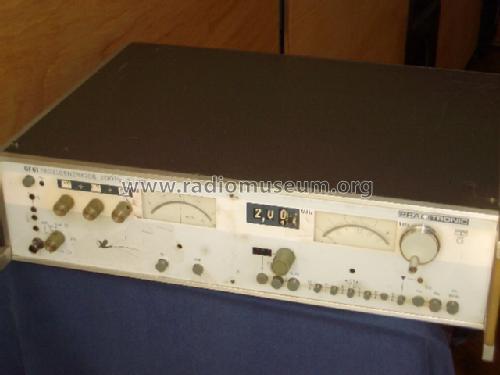

Pegelgenerator GF61; Präcitronic Dresden, (ID = 620488) Equipment
Präcitronic Dresden,: Pegelgenerator GF61 [Equipment] ID = 620488 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pegelgenerator GF61, Präcitronic Dresden, VEB; (Ostd.)

Country:  Germany
Manufacturer / Brand:  Präcitronic Dresden, VEB; (Ostd.)
Year: 1974 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Pegelgenerator GF61 - Präcitronic Dresden, VEB; Ostd
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 475 x 125 x 400 mm / 18.7 x 4.9 x 15.7 inch
Notes Für Wartungsmessungen an Trägerfrequenz-Übertrangungssystemen. Kontinuierlich einstellbare Frequenz von 200 Hz bis 2,1 MHz, Ausgangspegel von -61 db bis +11 db in 10- und 1-db-Schritten einstellbar. Externe AM-Modulation möglich. - Bestandteil eines Messplatzes zu dem noch der Pegelmesser MV61, der Wobbelzusatz GW61 und der Pegelbildempfäner SV61 gehören.
Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Collectors' prices
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

Model page created by Bernd Freytag. See "Data change" for further contributors.
