Eight Band R999 (Japan 712)

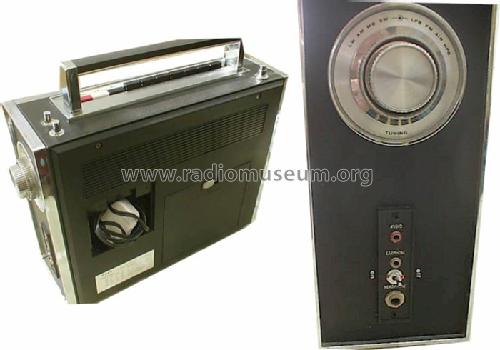

Eight Band R999 ; Prinzsound brand (ID = 666180) Radio Eight Band R999 ; Prinzsound brand (ID = 666181) Radio
Eight Band R999 ; Prinzsound brand (ID = 2370984) Radio
Use red slider bar for more.
Eight Band R999 ; Prinzsound brand (ID = 666180) Radio

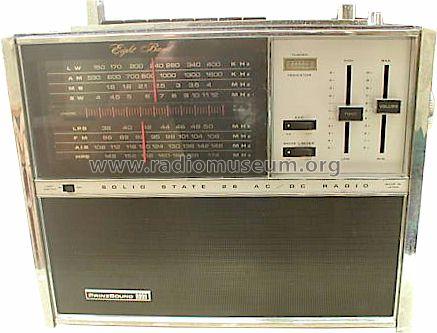

Prinzsound brand: Eight Band R999 [Radio] ID = 666180 437x333
Select picture or schematic to display from thumbnails on the right and click for download.
For model Eight Band R999 (Japan 712), Prinzsound (brand):
Ebay GB auction 130331090921 / adopted pic.

Country:  Great Britain (UK)
Manufacturer / Brand:  Prinzsound (brand)
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 26:
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 120; 220; 240; ? × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Eight Band R999 - Prinzsound brand
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 13 x 10 x 5 inch / 330 x 254 x 127 mm
Notes

Prinzsound R999 Eight Band Radio, coverage: LW 150 - 400 kHz, AM 530 - 1.600 kHz, MB 1.6 - 4.0 MHz, SW 4.0 - 12.0 MHz, LPB 38 - 50 MHz, FM 86,0 - 108 MHz, AIR 108 - 148 MHz, HPB 148 - 174 MHz. Three telescopic antennas, tuning meter, tone control, AFC, noise limiter, independent scale pointers for AM and VHF bands, audio, earphone and headphone jacks.

Made in Japan 712

Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Prinzsound (brand)
Here you find 9 models, 6 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
