Cremona hi-fi
Use red slider bar for more.

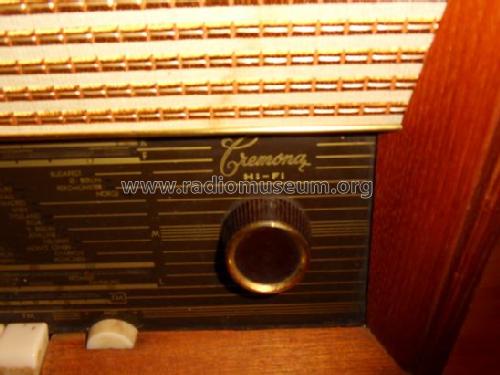

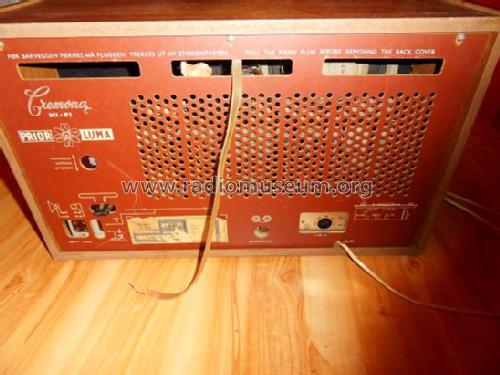

Prior Radiofabrikk A: Cremona hi-fi [Radio] ID = 403462 501x342
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1963 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: ECC85 ECH81 EBF89 ECL86 EM81 |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 130; 150; 210; 230 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | |
| from Radiomuseum.org | Model: Cremona hi-fi - Prior Radiofabrikk A/S; Oslo |
| Material | Wooden case |
| Shape | Tablemodel, with any shape - general. |
| Dimensions (WHD) | 545 x 325 x 205 mm / 21.5 x 12.8 x 8.1 inch |
| Price in first year of sale | 640.00 NKr |
| Mentioned in | Norwegian Historical Radio Society |
Model page created by Ernst Rykkje. See "Data change" for further contributors.
