Contador Frecuencímetro CD-40-B
Promax; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Promax; Barcelona
- Year
- 1978
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 196972
Catálogo posiblemente de 1980
Foto del manual

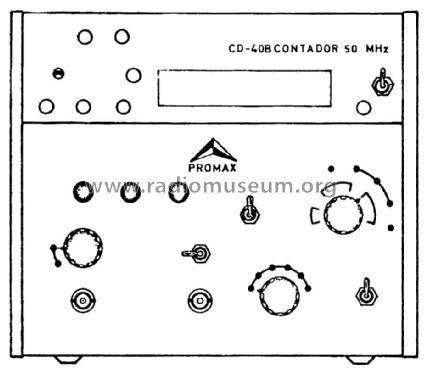

Catálogo posiblemente de 1980
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 13
- Semiconductors
- BC107 BFW11 BSX20 2N2369 2N3055 2N5179 SN7400 SN7420 SN7447 SN7473 SN7475 SN7476 SN7490 SN74123 SN74196 F111 5082-7750
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Contador Frecuencímetro CD-40-B - Promax; Barcelona
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 210 x 185 x 265 mm / 8.3 x 7.3 x 10.4 inch
- Notes
- CC a 50 MHz, 6 digitos.
Mide frecuencia, Periodo, Relacion de frecuencias, Intervalos de Tiempo y totales.
Listado un único semiconductor por cada tipo.
- Net weight (2.2 lb = 1 kg)
- 3.5 kg / 7 lb 11.3 oz (7.709 lb)
- Literature/Schematics (1)
- Anuncio REDE (Revista Española de Electrónica) Diciembre 1978
- Literature/Schematics (4)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
