• Country
• Spain

• Manufacturer / Brand
• Promax; Barcelona

• Year
• 1980 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 300282

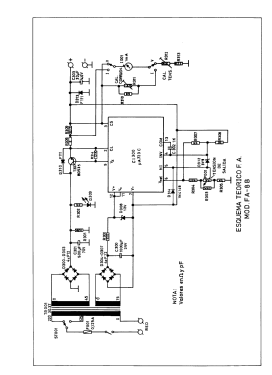

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• BD533 µA723 F12 F111 1N4148

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100-132; 200-240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Fuente de Alimentación FA-8-B - Promax; Barcelona

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 165 x 103 x 260 mm / 6.5 x 4.1 x 10.2 inch

• Notes

• Promax, Fuente de Alimentación FA-8-B

  Tensión de salida ajustable de 0 a 30V
  Intensidad variable de 0 a 250 mA. cortocircuitable

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Mentioned in
• - - Manufacturers Literature

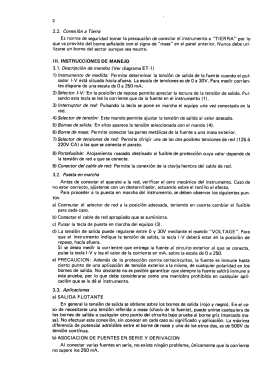

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.

• Other Models

• Here you find 189 models, 171 with images and 69 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Promax; Barcelona
