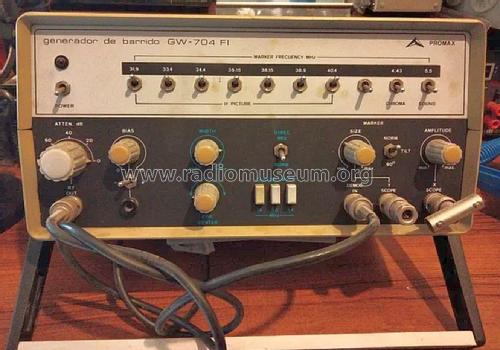

Generador de Barrido GW-704-FI (Sweep Generator)

Promax; Barcelona

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 300280

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Generador de Barrido GW-704-FI - Promax; Barcelona
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 300 x 145 x 250 mm / 11.8 x 5.7 x 9.8 inch
  • Notes

  • Margen de frecuencias: 4,4 - 5,5 - 36 MHz

    Con cuarzos internos conmutables: 31,9 - 33,4 - 34,47 - 35,1 - 38,9 - 40,4 - 5,5 - 4,43 MHz

  • Net weight (2.2 lb = 1 kg)
  • 3.5 kg / 7 lb 11.3 oz (7.709 lb)
  • Mentioned in
  • - - Manufacturers Literature
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
