• Country
• Spain

• Manufacturer / Brand
• Promax; Barcelona

• Year
• 1967

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 173352

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

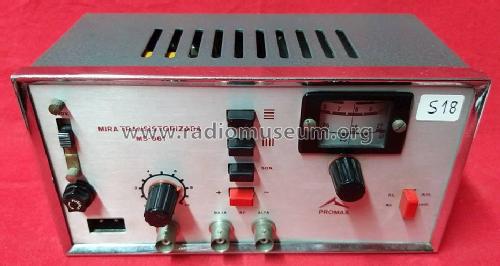

• Model: Mira Electrónica MS-661 - Promax; Barcelona

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 210 x 105 x 115 mm / 8.3 x 4.1 x 4.5 inch

• Notes
• Portatil/ Portable: Bandas en MHz: 24-36; 48-70; 150-230; 470-860.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• Literature/Schematics (1)
• Catálogo Promax 1967

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
