Voltímetro Electrónico (VTVM) VN-15
Promax; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Promax; Barcelona
- Year
- 1964 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 90961
Ebay DE mosfet-affe

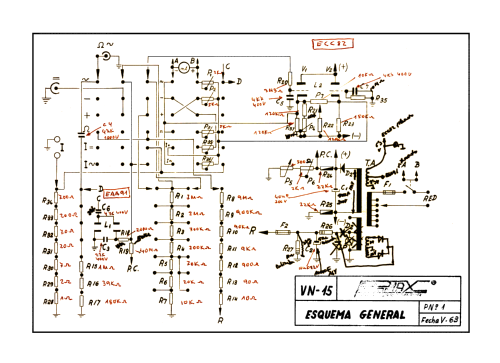

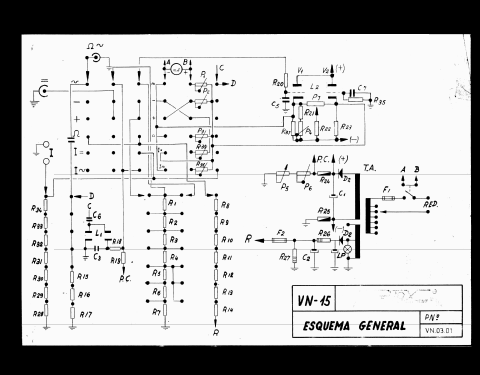

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Voltímetro Electrónico VN-15 - Promax; Barcelona
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 180 x 300 x 170 mm / 7.1 x 11.8 x 6.7 inch
- Notes
-
Promax Voltímetro Electrónico VN-15
Rangos: 1.5 - 1000 V AC/DC; 1.5 mA - 1.5 A AC/DC; 1 Ω to 1 MΩ
- Net weight (2.2 lb = 1 kg)
- 1.4 kg / 3 lb 1.3 oz (3.084 lb)
- Mentioned in
- Catálogo Promax 1965
