3-Wege Bassreflexbox Audax PRO38
Proraum Vertriebs-GmbH; Bad Oyenhausen
- Country
- Germany
- Manufacturer / Brand
- Proraum Vertriebs-GmbH; Bad Oyenhausen
- Year
- 1988 ??
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 225774
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 3-Wege Bassreflexbox Audax PRO38 - Proraum Vertriebs-GmbH; Bad
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 580 x 1160 x 480 mm / 22.8 x 45.7 x 18.9 inch
- Notes
-
3-Wege Bassreflexbox als Selbstbau-Kit. Entwickler: R. Krönke.
- Kennschalldruck: 100 dB (1 W / 1 m)
- Impedanz: 8 Ohm
- Belastbarkeit (DIN): 200 Watt

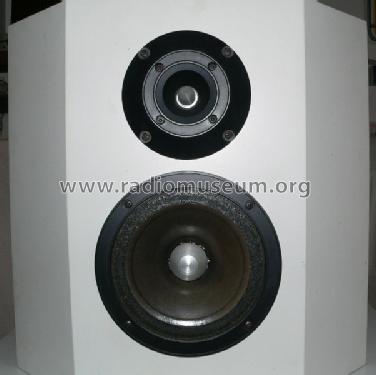

- Bass: HD38S100VSM
- Mitteltöner: PRD17HR37TSM-K
- Hochtöner: PR130P20HR

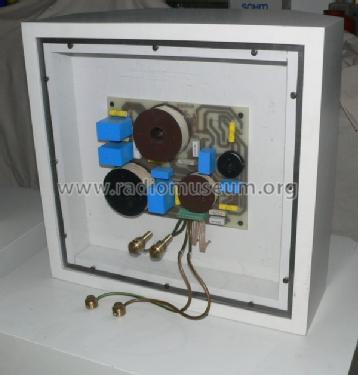

Preis für 1 Satz Lautsprecher mit Weiche.
- Price in first year of sale
- 1,440.00 DM
- Author
- Model page created by Hans- Georg Tenz. See "Data change" for further contributors.
