• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pure; Kings Langley

• Year
• 2006 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 360089

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• DSP, Digital Signal Processor

• Wave bands
• DAB and FM, perhaps with Streaming [DABFM]

• Power type and voltage
• Batteries / addl. power jack / 5 Volt

• Loudspeaker
• - only for Earphone!

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

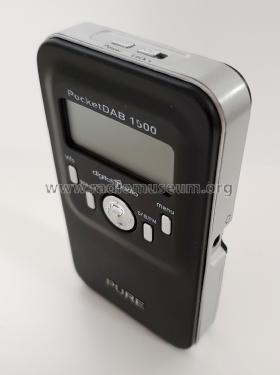

• Model: Pure Pocket DAB 1500 - Pure; Kings Langley

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 65 x 110 x 23 mm / 2.6 x 4.3 x 0.9 inch

• Notes

• The Pure PocketDAB 1500 is a compact handheld DAB radio featuring both DAB and FM reception.

  Features

  • Dual Reception: Supports both DAB and FM bands8
  • Presets: 10 presets available for DAB stations
  • Auto-tuning: FM tuner automatically searches for the nearest station
  • Sound Customization: Includes EQ settings for vocal, bass boost, love, jazz, and acoustic
  • Scanning Options: Offers UK-specific and full scanning capabilities
  • Station Display: Provides various ways to present available stations

  Specifications

  • Frequency range
    • DAB – Band III (174-240 MHz)
    • FM – 87.5-108 MHz.
  • Fully compliant with ETS 300 401 and capable of decoding all DAB transmission modes 1-4, up to 192 kbps.
  • Orange LCD screen with adjustable contrast and backlight, 16 x 2 characters.Battery Life: Approximately 24 hours with a built-in rechargeable ChargePAK™

  Технические характеристики:
  портативное персональное стереоустройство с цифровым DAB и FM-радио
  с возможностью полного приема DAB Band III.

  Полностью соответствует ETS 300 401 и способен декодировать
  все режимы передачи DAB 1-4, до 192 кбит/с.


   Диапазон частот DAB – Band III (174-240 МГц). FM – 87,5-108 МГц.
   Оранжевый ЖК-дисплей с подсветкой, 16 x 2 символов,
  значки функций и часы.
  Источник питания Литий-полимерный
  аккумулятор   PURE ChargePAK LP37

• Net weight (2.2 lb = 1 kg)
• 0.123 kg / 0 lb 4.3 oz (0.271 lb)

• Mentioned in
• - - Manufacturers Literature (Pure Pocket DAB1500 Owners Manual)

• Author
• Model page created by Nikolai Galak. See "Data change" for further contributors.
