1352; Pye Ltd., Radio (ID = 1490946) Radio

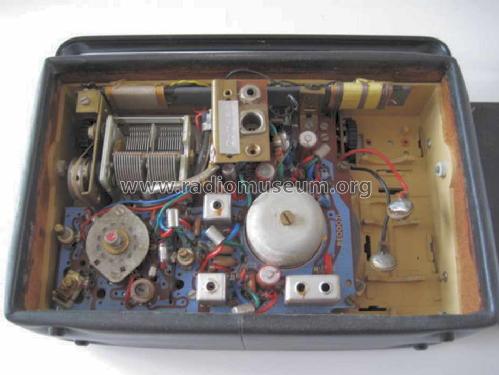

Pye Ltd., Radio: 1352 [Radio] ID = 1490946 933x717
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1352, Pye Ltd., Radio Works; Cambridge:
Edited from eBay 231019439921 step1991

Country:  Great Britain (UK)
Manufacturer / Brand:  Pye Ltd., Radio Works; Cambridge
Year: 1963 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF117 AF117 AF117 NKT255 NKT258 NKT251 NKT753
Main principle Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 1352 - Pye Ltd., Radio Works;
Notes

Portable radio with sockets for car aerial & earphone.

Uses an Ever Ready PP7 battery (Vidor T6007, Drydex DT7 also recommended)

Output is "matched" complementary push pull with a thermistor to stabilise bias.DC feedback to  driver with bias preset. Some production may use alternate transistors.

The 1352A is virtually identical and both models can be confused with Popliner 1363 which added MW bandspread for Luxembourg 208, BBC Third and "Pirates".

Source of data -- Schematic
Literature/Schematics (1) Radio And Television Servicing books (R&TVS) (1963-64 Ed. Page 260)

Model page created by Keith Staines. See "Data change" for further contributors.
