1355; Pye Ltd., Radio (ID = 1231558) Radio
Pye Ltd., Radio: 1355 [Radio] ID = 1231558 667x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1355, Pye Ltd., Radio Works; Cambridge

Country:  Great Britain (UK)
Manufacturer / Brand:  Pye Ltd., Radio Works; Cambridge
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF117 AF117 AF117 NKT255 NKT258 NKT753 NKT251
Main principle Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 1355 - Pye Ltd., Radio Works;
Shape Portable set > 8 inch (also usable without mains)

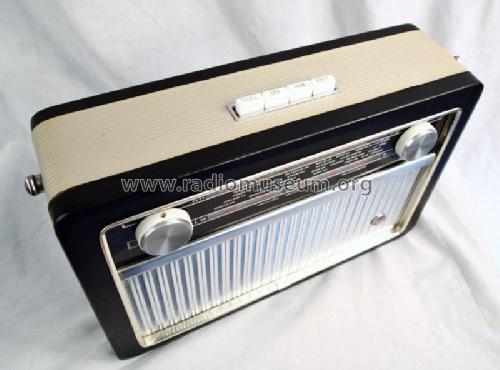

Notes Portable radio with sockets for car aerial & tape recorder. Battery type PP9. Speaker 7 x 3.635 inches.
Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book

Model page created by Keith Staines. See "Data change" for further contributors.
