15A; Pye Ltd., Radio (ID = 2300219) Radio
Pye Ltd., Radio: 15A [Radio] ID = 2300219 1400x1140
Select picture or schematic to display from thumbnails on the right and click for download.
For model 15A, Pye Ltd., Radio Works; Cambridge

Country:  Great Britain (UK)
Manufacturer / Brand:  Pye Ltd., Radio Works; Cambridge
Year: 1945–1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH35 EF39 EBL31 AZ31
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out 4.5 W (unknown quality)
from Radiomuseum.org Model: 15A - Pye Ltd., Radio Works;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 18 x 13 x 9 inch / 457 x 330 x 229 mm
Notes Pye´s first postwar domestic receiver. "Fly-wheel" tuning control.
Net weight (2.2 lb = 1 kg) 11.1 kg / 24 lb 7.2 oz (24.449 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radio! Radio!

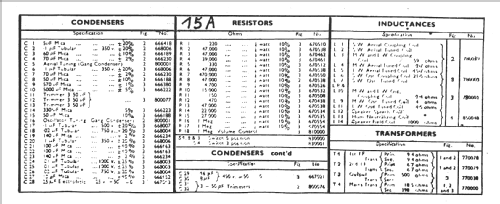

Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.


All listed radios etc. from Pye Ltd., Radio Works; Cambridge
Here you find 577 models, 419 with images and 335 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Pye Ltd., Radio: 15A
Threads: 1 | Posts: 1
Hits: 1874     Replies: 0
pye: 15A;
Willy De Grande
01.Oct.05
  1 Auf Frage(e-mail) von Herr Arpad Roth bitte Ich um Folgende änderung:

Rohren           4.ECH35or6K8 EF39 EBL31 AZ31

Mit freunlichen Grüssen

Willy De Grande
