• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pye Ltd., Radio Works; Cambridge

• Year
• 1966 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 102288

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• AF115 AF117 AF117 AC128 AD149

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 2.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

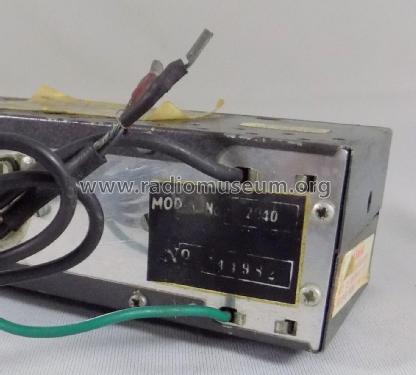

• Model: Micro 2040 - Pye Ltd., Radio Works;

• Shape
• Chassis only or for «building in»

• Notes

• A five transistor car radio covering MW (185-577 metres) and LW (1155-1930 metres). Powered by a 12 volt car battery, with either negative or positive polarity. A switch is provided to adjust the polarity. Manual tuning. Transistors 1, 2 and 3 above are in an IF module.

  Similar to the Ekco CR935 Envoy car radio.









• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1811 dated 7 July 1967)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
