• Year
  • 1947 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 192449

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • AC/DC-set / 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

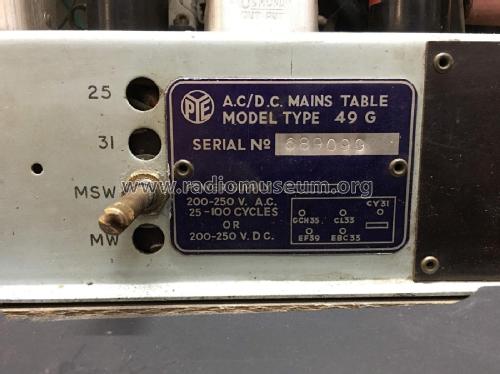

  • Model: 49G - Pye Ltd., Radio Works;
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Specialy made for the use in the tropics. 6 SW bands plus tropical band. Dial lamps: 2x 4V/0,3A.
  • Source of data
  • -- Schematic
