• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pye Ltd., Radio Works; Cambridge

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72452

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• K50M K30K K30K K70B or Pen220

• Main principle
• TRF with regeneration

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 2 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

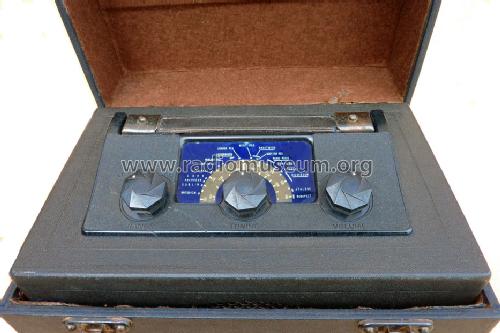

• Model: Baby Q - Pye Ltd., Radio Works;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 11.5 x 10 x 7 inch / 292 x 254 x 178 mm

• Notes

• Sold in France as Ducretet Camping.

• External source of data
• Hill: RadioRadio; Hawes: Radio Art;

• Literature/Schematics (1)

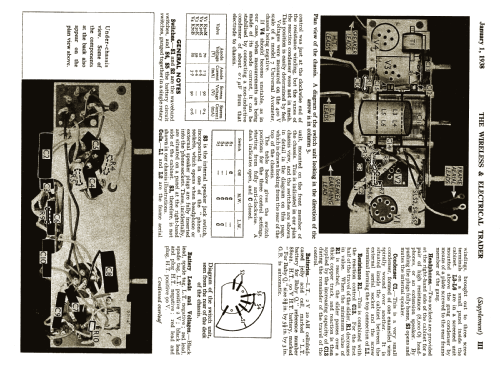

• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (277)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
