Bantam HP1FM
Pye Electrónica; Madrid
- Country
- Spain
- Manufacturer / Brand
- Pye Electrónica; Madrid
- Year
- 1967 ?
- Category
- Commercial Transmitter & Receiver (TRX not Amateur)
- Radiomuseum.org ID
- 321324
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transceiver; ZF/IF 10700/455 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Storage and/or dry batteries / 19,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org

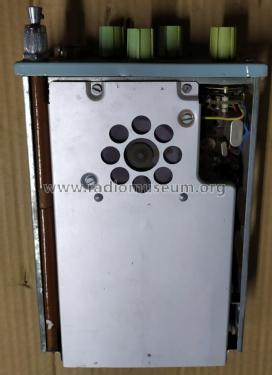

- Model: Bantam HP1FM - Pye Electrónica; Madrid
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 140 x 210 x 50 mm / 5.5 x 8.3 x 2 inch
- Notes
-
Transceptor portátil en la banda baja de VHF (79.2 MHz esta unidad) aunque se fabricó en otras bandas, tanto en AM como en FM
Potencia de RF: 1 W
Antena telescópica de 95 cm
3 canales
Posibilidad de alimentación con batería recargable o caja para pilas secas.Fue usado habitualmente por la Guardia Civil en España.
See also the GB PYE Bantam Portable VHF Radiotelephone HP1FM
- Net weight (2.2 lb = 1 kg)
- 1.9 kg / 4 lb 3 oz (4.185 lb)
- Author
- Model page created by Gerardo Ramón. See "Data change" for further contributors.
