FM-AM Piper P117

FM-AM Piper P117; Pye Ltd., Radio (ID = 576711) Radio

FM-AM Piper P117; Pye Ltd., Radio (ID = 576712) Radio

FM-AM Piper P117; Pye Ltd., Radio (ID = 576713) Radio

FM-AM Piper P117; Pye Ltd., Radio (ID = 576714) Radio

FM-AM Piper P117; Pye Ltd., Radio (ID = 585496) Radio

FM-AM Piper P117; Pye Ltd., Radio (ID = 585497) Radio

FM-AM Piper P117; Pye Ltd., Radio (ID = 1893734) Radio

FM-AM Piper P117; Pye Ltd., Radio (ID = 1893735) Radio

FM-AM Piper P117; Pye Ltd., Radio (ID = 2349043) Radio

FM-AM Piper P117; Pye Ltd., Radio (ID = 1893736) Radio
FM-AM Piper P117; Pye Ltd., Radio (ID = 832768) Radio FM-AM Piper P117; Pye Ltd., Radio (ID = 832769) Radio
FM-AM Piper P117; Pye Ltd., Radio (ID = 832770) Radio FM-AM Piper P117; Pye Ltd., Radio (ID = 223617) Radio
FM-AM Piper P117; Pye Ltd., Radio (ID = 223618) Radio FM-AM Piper P117; Pye Ltd., Radio (ID = 223619) Radio
Use red slider bar for more.
FM-AM Piper P117; Pye Ltd., Radio (ID = 832768) Radio
Pye Ltd., Radio: FM-AM Piper P117 [Radio] ID = 832768 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM-AM Piper P117, Pye Ltd., Radio Works; Cambridge:

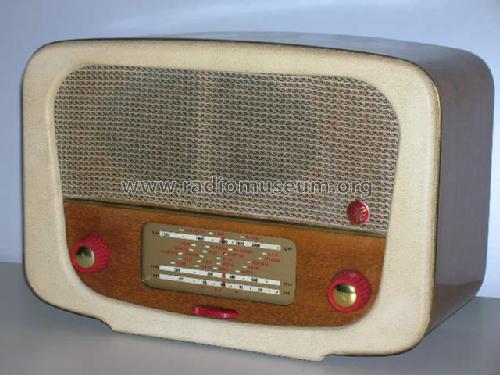

My 1957 PYE Piper AC mains 4 valve AM/FM compact table radio

Country:  Great Britain (UK)
Manufacturer / Brand:  Pye Ltd., Radio Works; Cambridge
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECC85 EBF89 ECL82 EZ80
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz; Reflex
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: FM-AM Piper P117 - Pye Ltd., Radio Works;
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 305 x 205 x 140 mm / 12 x 8.1 x 5.5 inch
Notes 3 valve plus rectifier AM/FM reflex receiver. The first triode operates as a reflex RF/IF amplifier on VHF. Later production has a modified audio stage.
Source of data - - Data from my own collection

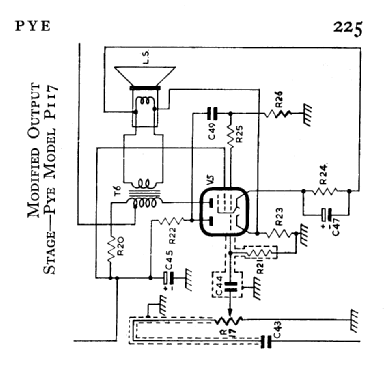

Circuit diagram reference Radio College of Canada
Mentioned in Trader Sheet 1347

Model page created by Antonio Martins-Pais. See "Data change" for further contributors.



All listed radios etc. from Pye Ltd., Radio Works; Cambridge
