P75A

P75A; Pye Ltd., Radio (ID = 282547) Radio P75A; Pye Ltd., Radio (ID = 282549) Radio
P75A; Pye Ltd., Radio (ID = 282551) Radio P75A; Pye Ltd., Radio (ID = 662552) Radio
P75A; Pye Ltd., Radio (ID = 662553) Radio P75A; Pye Ltd., Radio (ID = 1007302) Radio

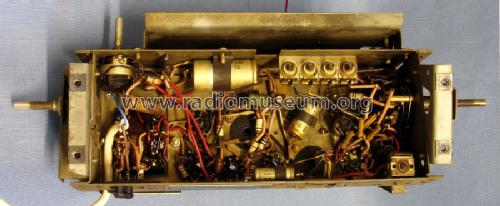

P75A; Pye Ltd., Radio (ID = 1007303) Radio P75A; Pye Ltd., Radio (ID = 1007304) Radio
Use red slider bar for more.

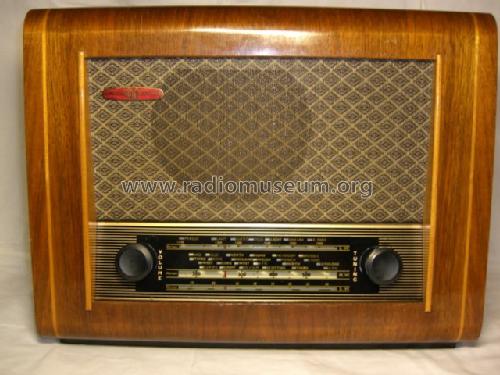

P75A; Pye Ltd., Radio (ID = 282547) Radio
Pye Ltd., Radio: P75A [Radio] ID = 282547 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model P75A, Pye Ltd., Radio Works; Cambridge

Country:  Great Britain (UK)
Manufacturer / Brand:  Pye Ltd., Radio Works; Cambridge
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6C9_UK EF41 EBC41 EL41 EZ40
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out 4 W (unknown quality)
from Radiomuseum.org Model: P75A - Pye Ltd., Radio Works;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 16 x 12 x 7.5 inch / 406 x 305 x 191 mm
Collectors' prices
Source of data Radio! Radio!

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
