• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pye Ltd., Radio Works; Cambridge

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78066

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• S215VM S215VM S215VM L2 PD220

• Number of Transistors

• Semiconductors
• W2_Westector W6_Westector

• Main principle
• Superhet with RF-stage; ZF/IF 114 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 4.5 & 130 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch

• Material
• Wooden case

• from Radiomuseum.org

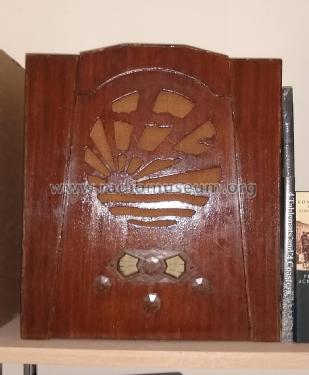

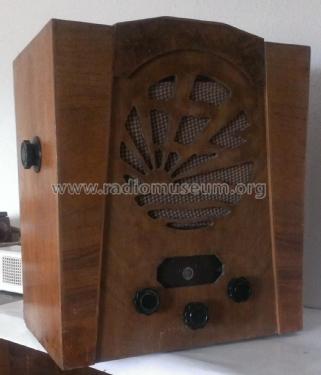

• Model: P/B - Pye Ltd., Radio Works;

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 15.75 x 18.5 x 10 inch / 400 x 470 x 254 mm

• Notes
• "Westector" as 2nd Det.

• Price in first year of sale
• 14.70 GBP

• Source of data
• Radio! Radio!

• Mentioned in
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (October 28th, 1933)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
