P.C.R. 1 ZA26707 (ZA 26707)

P.C.R. 1; Pye Ltd., Radio (ID = 348988) Commercial Re
P.C.R. 1; Pye Ltd., Radio (ID = 476574) Commercial Re P.C.R. 1; Pye Ltd., Radio (ID = 476572) Commercial Re
P.C.R. 1; Pye Ltd., Radio (ID = 476573) Commercial Re P.C.R. 1; Pye Ltd., Radio (ID = 348032) Commercial Re
P.C.R. 1; Pye Ltd., Radio (ID = 476566) Commercial Re P.C.R. 1; Pye Ltd., Radio (ID = 476567) Commercial Re
P.C.R. 1; Pye Ltd., Radio (ID = 476580) Commercial Re P.C.R. 1; Pye Ltd., Radio (ID = 476581) Commercial Re
P.C.R. 1; Pye Ltd., Radio (ID = 476582) Commercial Re P.C.R. 1; Pye Ltd., Radio (ID = 1040588) Commercial Re
Use red slider bar for more.
P.C.R. 1; Pye Ltd., Radio (ID = 476574) Commercial Re

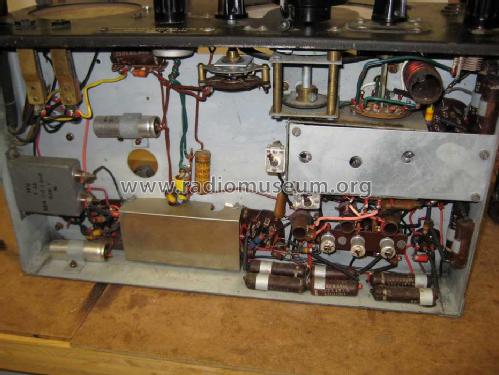

Pye Ltd., Radio: P.C.R. 1 [Commercial Re] ID = 476574 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model P.C.R. 1 ZA26707 (ZA 26707), Pye Ltd., Radio Works; Cambridge

Country:  Great Britain (UK)
Manufacturer / Brand:  Pye Ltd., Radio Works; Cambridge
Year: 1944 Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 6: EF39 ECH35 EF39 EF39 EBC33 EL32
Main principle Superhet with RF-stage; ZF/IF 465 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Powered by external power supply or a main unit. / 250 / 12 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: P.C.R. 1 [ZA26707 ] - Pye Ltd., Radio Works;
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 17 x 10 x 8 inch / 432 x 254 x 203 mm
Notes Communications receiver covering 143-375 kHz, 530-1580 kHz, 5,8-18 MHz, AM, CW (BFO).
Internal speaker (not found on later models).
Needs extern power supply No. 17 (ZA 26706) or 12 V vibratory unit No. 8 (ZA 26705) or 9 (ZA 29770).
alternative tube layout (Army designations ARP34 ARTH2 ARP34 ARP34 AR21 VT52).
Net weight (2.2 lb = 1 kg) 11.350 kg / 25 lb 0 oz (25 lb)
Mentioned in Wireless for the Warrior Vol.3
Literature/Schematics (1) -- Schematic

Model page created by a member from A. See "Data change" for further contributors.
