PE99

Pye Ltd., Radio Works; Cambridge

Data
Forum
Pictures
Collections

  • Year
  • 1957 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 241893

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage

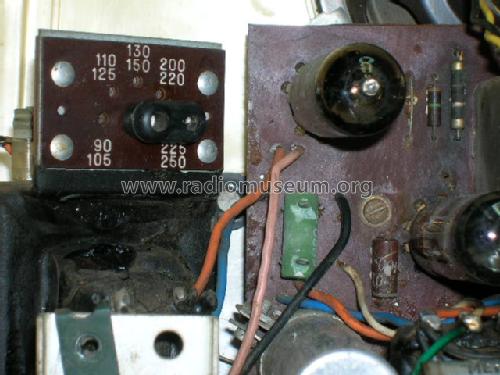

  • Alternating Current supply (AC) / 90-105; 110-125; 130-150; 200-220; 225-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.8 cm = 5 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: PE99 - Pye Ltd., Radio Works;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 332 x 235 x 140 mm / 13.1 x 9.3 x 5.5 inch
  • Notes

  • Wavebands: MW/BC, Marine/Aeronautical SW and General SW.

    Export model, not distributed in UK.

    There is a battery only version PE99B similar in appearance.
