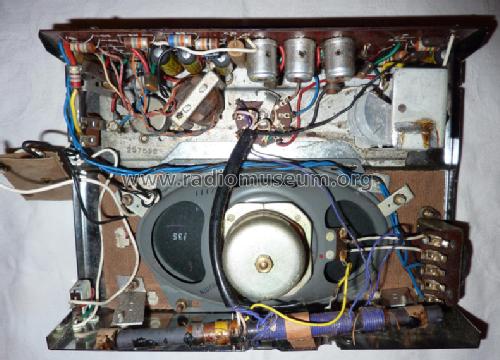

Pye Ltd., Radio: Q3 [Radio] ID = 718583 725x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Q3, Pye Ltd., Radio Works; Cambridge

Country:  Great Britain (UK)
Manufacturer / Brand:  Pye Ltd., Radio Works; Cambridge
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: Tr_XXXX
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Q3 - Pye Ltd., Radio Works;
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 285 x 215 x 105 mm / 11.2 x 8.5 x 4.1 inch
Notes Almost similar to model Q4, slightly different case. Transistors of the type "Yellow Circle". Later models have 7 transistors.
Source of data Radio And Television Servicing books (R&TVS)
