Radio Cassette Recorder TR1728

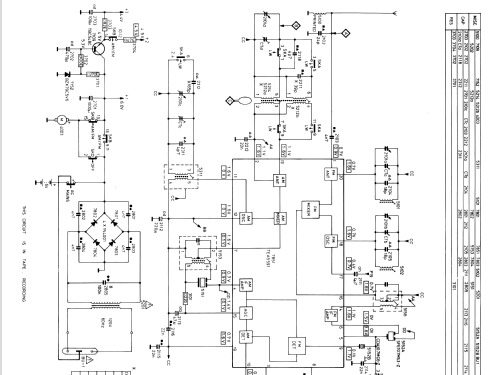

Radio Cassette Recorder TR1728; Pye Ltd., Radio (ID = 1913189) Radio

Radio Cassette Recorder TR1728; Pye Ltd., Radio (ID = 1913190) Radio
Radio Cassette Recorder TR1728; Pye Ltd., Radio (ID = 1646644) Radio
Use red slider bar for more.
Radio Cassette Recorder TR1728; Pye Ltd., Radio (ID = 1646644) Radio
Pye Ltd., Radio: Radio Cassette Recorder TR1728 [Radio] ID = 1646644 933x594
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radio Cassette Recorder TR1728, Pye Ltd., Radio Works; Cambridge:
By courtesy of guest Edizioni Periferia

Country:  Great Britain (UK)
Manufacturer / Brand:  Pye Ltd., Radio Works; Cambridge
Year: 1985 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: BC548 BC548 BC548 BC558 TEA5591 U420B
Main principle Super-Heterodyne (Super in general); ZF/IF 468/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220/240 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Radio Cassette Recorder TR1728 - Pye Ltd., Radio Works;
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable also without mains)
Notes

Features

  • One Touch Recording
  • Auto stop on Cassette
  • Built in microphone
  • Automatic recording level
  • Push button cassette control
  • Sliding controls.

Made in China / P.R.C.

Probably distributed by various Philips agents in Europe as it has also French band designations. Produced during an era when Pye was only a brand name for lower cost Philips products.

Implementation of documentation based model Philips TR1728, the execution number is likely to be /05R.

Mentioned in -- Original-techn. papers.

Model page created by Michael Watterson. See "Data change" for further contributors.
