• Year
  • 1961 ?
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 334529

 Technical Specifications

  • Number of Tubes
  • 4
  • Number of Transistors
  • 1
  • Semiconductors
  • OC19
  • Main principle
  • Superheterodyne (common); ZF/IF 480 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s). / Ø 6 inch = 15.2 cm
  • Material
  • Metal case
  • from Radiomuseum.org

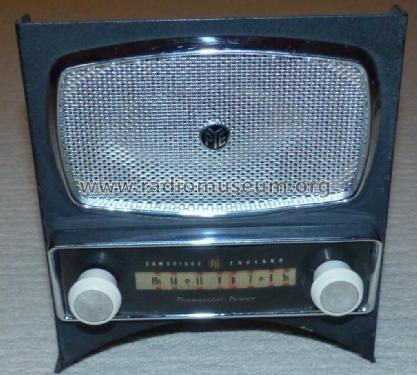

  • Model: TCR1000SU/C - Pye Ltd., Radio Works;
  • Shape
  • Chassis only or for «building in»
  • Notes
  • Broadcast band only version of the PYE Pyeway TCR1000SU/X car radio as fitted to a North American export Triumph TR3A. Supplied with an elliptical loudspeaker.

  • Author
  • Model page created by Rick Williams. See "Data change" for further contributors.
