• Year
  • 1954 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 319123

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Power out
  • 4.5 W (5 W max.)
  • Material
  • Wooden case
  • from Radiomuseum.org

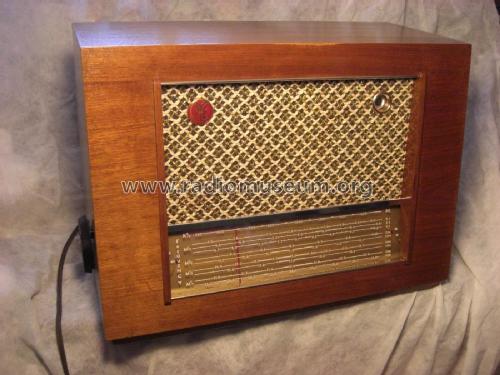

  • Model: T 7103 - PYE Canada, Ontario
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 15 x 11 x 21 inch / 381 x 279 x 533 mm
  • Notes
  •  Has selection for  BC, S1, S2, S3, 31M, 25M, 19M, 16M, 13M, and 11M bands.

  • Net weight (2.2 lb = 1 kg)
  • 30 lb 0 oz (30 lb) / 13.620 kg
  • Author
  • Model page created by Frank Cuomo. See "Data change" for further contributors.
