Akai Stereo Cassette Deck GXC-709D New Zealand Version

Pye (N.Z.) Ltd.; Waihi

Data
Forum
Pictures
Collections

  • Year
  • 1978 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 362414

 Technical Specifications

  • Number of Transistors
  • 28
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 50Hz, 230 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Akai Stereo Cassette Deck GXC-709D [New Zealand Version] - Pye N.Z. Ltd.; Waihi
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 440 x 165 x 285 mm / 17.3 x 6.5 x 11.2 inch
  • Notes

  • Akai GXC-709D Stereo Cassette Deck

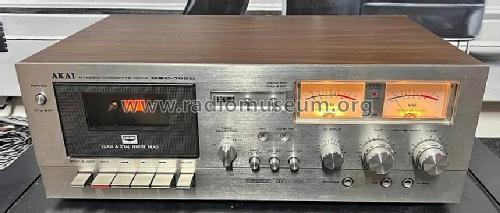

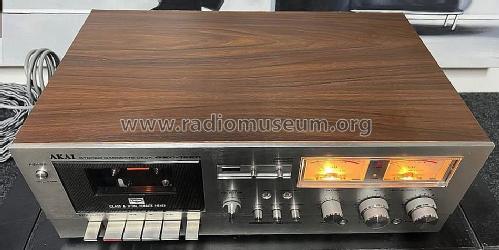

    Front-loading 4-track stereo cassette deck with:

    • Dolby system. 35 - 17000 Hz (FeCr).

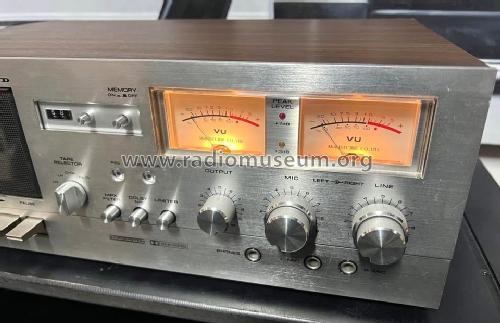

    • 2 VU meters, pause button, tape run indicator, 4-way tape type switching, LED peak level display, MPX filter, output control.
    • 2 microphone jacks and 1 stereo headphone output on the front.
    • 28 transistors, 36 diodes, 2 IC's and 2 FET's.

    Assembled under licence by PYE Ltd New Zealand.

    See also 220V version GXC-709D.

  • Net weight (2.2 lb = 1 kg)
  • 6.5 kg / 14 lb 5.1 oz (14.317 lb)
  • Price in first year of sale
  • 645.00 NZ $
  • Mentioned in
  • -- Original prospect or advert (Press 22 February 1979 Page 2)
  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
