• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Pye (N.Z.) Ltd.; Waihi

• Year
• 1969 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 363665

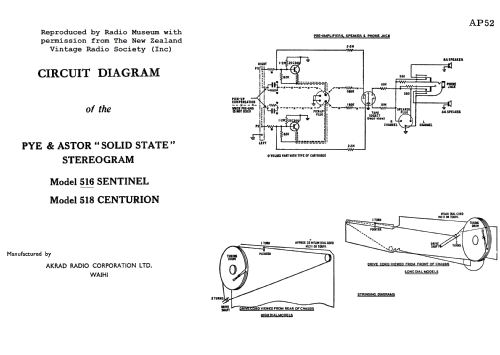

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• or or or or or or or or or

• Number of Transistors
• 11

• Semiconductors
• 2N1526 2SA73 2N1524 2SA472 2N1524 2SA472 2N3565 2SC369 2N3565 2SC369 2N4355 AY1120 AC188 AC117 AC187 AC175 AC188 AC117 AC187 AC175

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 50 Hz, 230 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

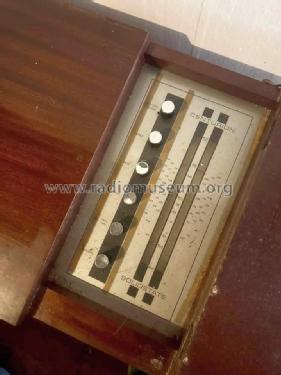

• Model: Centurion Stereophonic Solid State 518 - Pye N.Z. Ltd.; Waihi

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• PYE 518 Centurion Stereophonic Solid State

  PYE CENTURION 15 solid state devices. Delivers 12 music watts power. Laboratory matched dual cone speakers, combined with de luxe Garrard automatic changer gives widest frequency response. Record storage houses more than 100 12" L.P.'s. $239.00

  Garrard 3000 4-speed automatic record changer.

  See also Astor 516 Sentinel.

• Price in first year of sale
• 239.00 NZ $

• Mentioned in
• -- Original prospect or advert (Taupo Times 28 August 1969 Page 6)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
