• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Pye (N.Z.) Ltd.; Waihi

• Year
• 1960 ??

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 360987

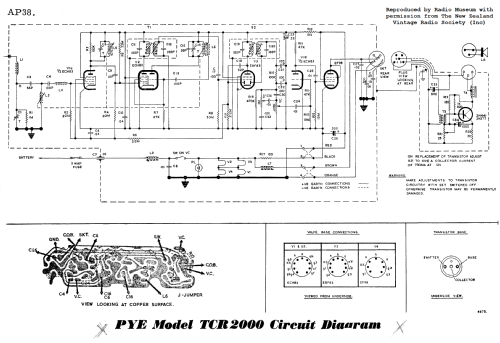

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH83 ECH83 EBF83 EF98 or

• Number of Transistors
• 1

• Semiconductors
• 2N441 2N277

• Main principle
• Superhet with RF-stage; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

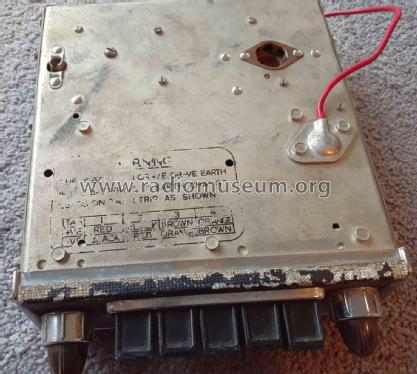

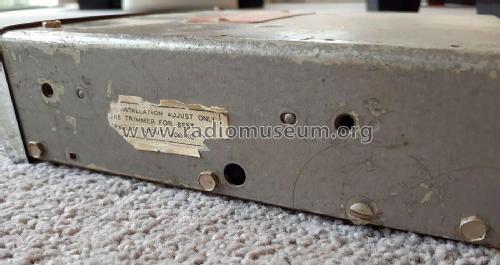

• Model: Hybrid Car Radio TCR2000 - Pye N.Z. Ltd.; Waihi

• Shape
• Chassis only or for «building in»

• Notes

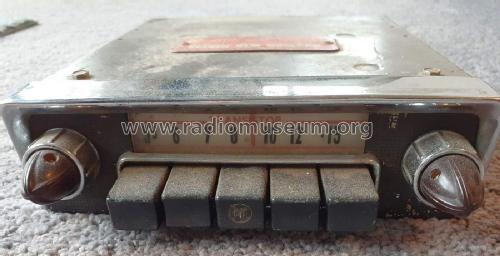

• PYE TCR2000 Hybrid Car Radio

  4-valve, 1-transistor hybrid push-button car radio.

  See also GB version Touchbutton Pyeway TCR2000

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
