Radio Ranger Multi-Band Radio MB-553L

Pye (N.Z.) Ltd.; Waihi

Data
Forum
Pictures
Collections

  • Year
  • 1983 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 361966

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Line / Batteries (any type) / 50Hz, 240 / D: 6 x 1.5 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Radio Ranger Multi-Band Radio MB-553L - Pye N.Z. Ltd.; Waihi
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

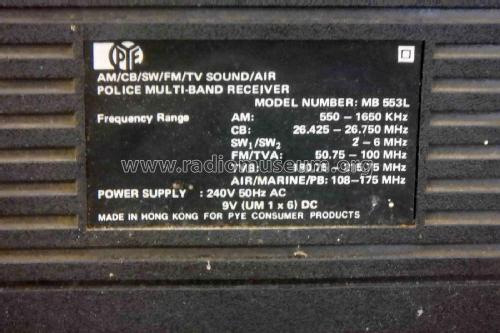

  • PYE MB-553L Radio Ranger Multi-Band Radio

    AM/CB/SW/FM/TV SOUND/AIR POLICE MULTI-BAND RECEIVER

    MODEL NUMBER: MB 553L Frequency Range:

    • AM: 580-1660 KHz
    • CB: 26.425-26.750 MHz
    • SW1/SW2: 2-6 MHz
    • FM/TVA: 50.75- 100 MHz
    • TVB: 180.75-215.75 MHz
    • AIR/MARINE/PB: 108-175 MHz
    • POWER SUPPLY: 24OV 50Hz AC / 9V (UM 1x6) DC

    MADE IN HONG KONG FOR PYE CONSUMER PRODUCTS

  • Mentioned in
  • -- Original prospect or advert (Press 2 August 1983 Page 7)
  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
