Solid State Car Radio TCR1005

Pye (N.Z.) Ltd.; Waihi

Data
Forum
Pictures
Collections

  • Year
  • 1964
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 361221

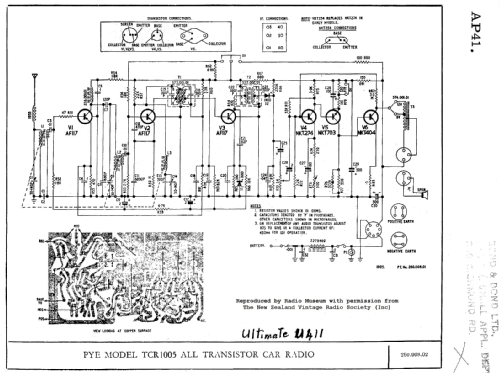

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superhet with RF-stage; 3 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Solid State Car Radio TCR1005 - Pye N.Z. Ltd.; Waihi
  • Shape
  • Chassis only or for «building in»
  • Notes

  • PYE TCR1005 Solid State Car Radio

    6-transistor broadcast (MW) superhet with RF stage manual control car radio.

    Pye all-transistor Solid-State car radio brings motorists the faultless performance they would normally expect from a big set at home. The same pulling power for distant stations, the same crystal clear tone and the same noise-free reception. The famous "PYE Copperplate" Printed Circuit ensures long, trouble-free life, permeability tuning keeps the set perfectly tuned on even the roughest road, while an RF stage gives easy, perfect tuning.        7 x 4 inch Hi Flux speaker and transistor performance. £24/19/6

    See also PYE TCR2005 with manual and push button control.

  • Price in first year of sale
  • 24.98 NZ £
  • Mentioned in
  • -- Original prospect or advert (Press 26 November 1964 Page 4)
  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
