1901; Pygmy, Ciate-Pygmy (ID = 1469223) Radio
Pygmy, Ciate-Pygmy: 1901 [Radio] ID = 1469223 900x605
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1901, Pygmy, Ciate-Pygmy (SCIP, CIATE); Paris, La Plaine St. Denis, La Courneuve

Country:  France
Manufacturer / Brand:  Pygmy, Ciate-Pygmy (SCIP, CIATE); Paris, La Plaine St. Denis, La Courneuve
Year: 1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF125 160T1 AF125 AF165 AF166 AF166 2R13 2R13 AC139 AC139 BA110 OA79 OA79 OA79
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 6 x 1.5 / DC 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 1901 - Pygmy, Ciate-Pygmy SCIP, CIATE
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 310 x 185 x 93 mm / 12.2 x 7.3 x 3.7 inch
Notes

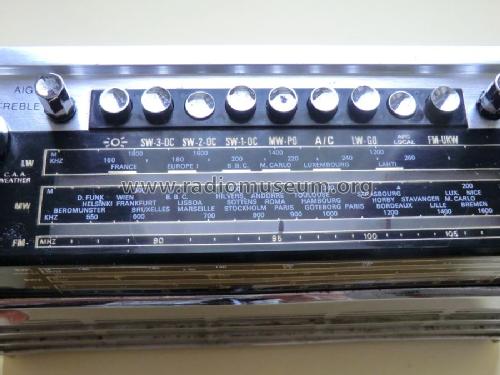

6 gammes d'ondes: PO 520 - 1620 kHz, GO 154 - 270 kHz, OC1 1.6 - 3.8 MHz, OC2 4.6 - 10.5 MHz, OC2 10.3 - 20 MHz et FM. Clavier 9 touches (dont 1 pour éclairage). Prises pick-up (DIN), écouteur, antenne voiture. 10 transistors + 4 diodes.

Avis: il ya une erreur d'orthographe dans le schéma: mentionne transistor 2P13 au lieu de 2R13.


Three SW ranges with coverage from 180 to 15 meters. Two tone controls, AFC/local key, temporary light. Jacks for external power supply, external antennas, earphone, DIN. On/off switch on volume knob.

Net weight (2.2 lb = 1 kg) 2.9 kg / 6 lb 6.2 oz (6.388 lb)
Mentioned in -- Schematic
Literature/Schematics (1) Le grand livre de la TSF (Doctsf Ref 10711)

Model page created by Felice Nicolini. See "Data change" for further contributors.
