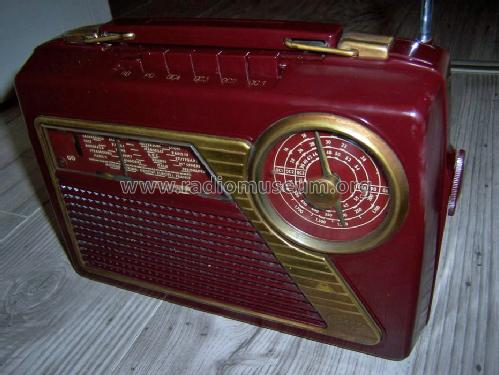

Golf avec clavier, 6 lampes
Pygmy, Ciate-Pygmy (SCIP, CIATE); Paris, La Plaine St. Denis, La Courneuve
- Country
- France
- Manufacturer / Brand
- Pygmy, Ciate-Pygmy (SCIP, CIATE); Paris, La Plaine St. Denis, La Courneuve
- Year
- 1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 87336
ebay.fr #201082510385 seller jpaul7482
PYGMY golf 6 basse consommation
PYGMY golf 6 basse consommation
PYGMY golf 6 basse consommation
PYGMY golf 6 basse consommation
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Line / Batteries (any type) / 110-245 / 3 x 1.5 & 1 x 67,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Golf [avec clavier, 6 lampes] - Pygmy, Ciate-Pygmy SCIP, CIATE
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 295 x 200 x 103 mm / 11.6 x 7.9 x 4.1 inch
- Notes
-
6 gammes d'ondes: PO, GO et 4 x OC. Clavier 6 touches. Cadre incorporé. Antenne télescopique.
Coffret matière plastique.
- Mentioned in
- Le grand livre de la TSF (Doctsf Ref 21189)
- Author
- Model page created by Hugo Sneyers. See "Data change" for further contributors.
