Nain 1957

Nain ; Pygmy, Ciate-Pygmy (ID = 1280509) Radio Nain ; Pygmy, Ciate-Pygmy (ID = 260561) Radio
Use red slider bar for more.
Nain ; Pygmy, Ciate-Pygmy (ID = 1280509) Radio
Pygmy, Ciate-Pygmy: Nain [Radio] ID = 1280509 800x533
Select picture or schematic to display from thumbnails on the right and click for download.
For model Nain 1957, Pygmy, Ciate-Pygmy (SCIP, CIATE); Paris, La Plaine St. Denis, La Courneuve

Country:  France
Manufacturer / Brand:  Pygmy, Ciate-Pygmy (SCIP, CIATE); Paris, La Plaine St. Denis, La Courneuve
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50B5 35W4
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage AC/DC-set

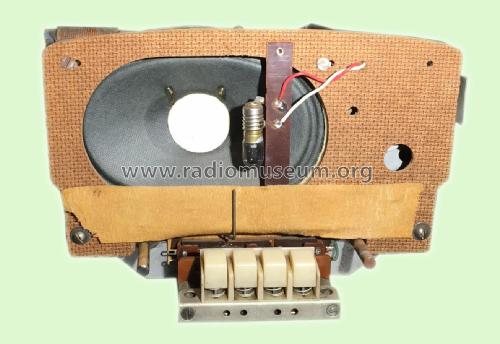

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Nain [1957] - Pygmy, Ciate-Pygmy SCIP, CIATE
Material Bakelite or Plastics (type unknown)

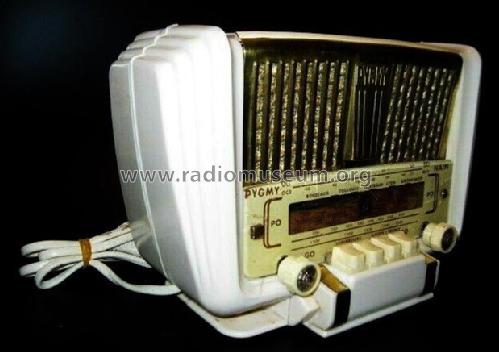

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 230 x 150 x 95 mm / 9.1 x 5.9 x 3.7 inch
Notes

4 gammes d'ondes OC1, OC2, PO, GO. Clavier 4 touches. Tonalité réglable. Cadre ferroxcube. HP elliptique 10 x 14 cm.

Coffret 2 coquilles ivoire, vert ou bordeaux.

Price in first year of sale 16'864.00 FRF
Mentioned in Le Haut-Parleur (Présentation Numéro Spécial Salon 1957, 1er Oct 1956)
Literature/Schematics (2) Le grand livre de la TSF (Doctsf Ref 21214)

Model page created by John Koster. See "Data change" for further contributors.
