• Country
• France

• Manufacturer / Brand
• Pyrus-Télémonde, Éts. Buis; Paris

• Year
• 1950–1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 253415

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12AV6 12BA6 50B5 35W4

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-130 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

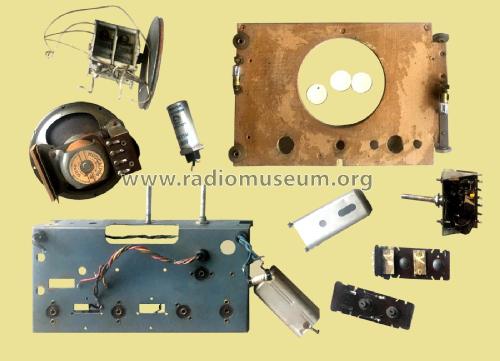

• Model: Poucet - Pyrus-Télémonde, Éts. Buis;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 290 x 200 x 190 mm / 11.4 x 7.9 x 7.5 inch

• Notes

• 5 tubes miniatures. Cadran 2 glaces en polystyrène. Antifading. Contre-réaction BF.

  Coffret en matière moulée, filets plastique.

• Net weight (2.2 lb = 1 kg)
• 3.4 kg / 7 lb 7.8 oz (7.489 lb)

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• Le grand livre de la TSF (Doctsf Ref. 22174)
