• Country
• Poland

• Manufacturer / Brand
• PZT - Państwowe Zakłady Tele- i Radiotechniczne; Warsawa

• Year
• 1961 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 327459

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• EF22 6SN7 6SN7 6L6 EM4 or EM34 6L6 6L6 6L6 AZ4 U52 U52

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 75 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

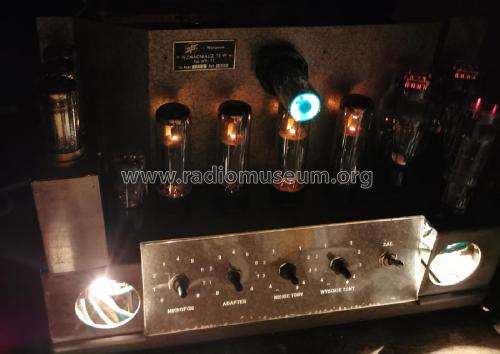

• Model: Wzmacniacz - Amplifier WR-75 - PZT - Państwowe Zakłady Tele-

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 425 x 280 x 285 mm / 16.7 x 11 x 11.2 inch

• Net weight (2.2 lb = 1 kg)
• 25 kg / 55 lb 1.1 oz (55.066 lb)

• Author
• Model page created by Radoslaw Mirowski. See "Data change" for further contributors.
