RA-17C-12

RA-17C-12; Racal Engineering (ID = 372748) Receiver-C RA-17C-12; Racal Engineering (ID = 322183) Receiver-C

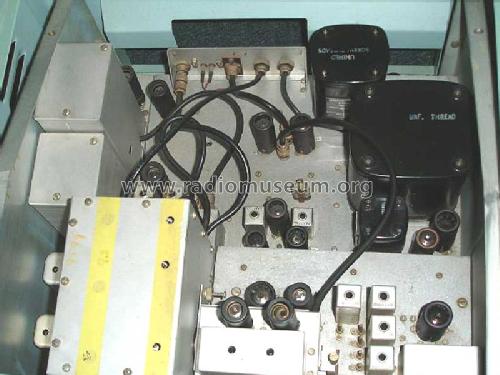

RA-17C-12; Racal Engineering (ID = 322184) Receiver-C RA-17C-12; Racal Engineering (ID = 322185) Receiver-C
RA-17C-12; Racal Engineering (ID = 322186) Receiver-C
Use red slider bar for more.
RA-17C-12; Racal Engineering (ID = 372748) Receiver-C
Racal Engineering: RA-17C-12 [Receiver-C] ID = 372748 933x577
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA-17C-12, Racal Engineering (Racal Instruments) Ltd., Bracknell

Country:  Great Britain (UK)
Manufacturer / Brand:  Racal Engineering (Racal Instruments) Ltd., Bracknell
Year: 1957 ? Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 23: 6AU6 ECC189 6AS6 6688 6BE6 6BA6 6AL5 5V4G
Main principle Wadley-Loop principle (including dual superhet); ZF/IF 40000/2500 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 100-125 / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
Power out 0.05 W (unknown quality)
from Radiomuseum.org Model: RA-17C-12 - Racal Engineering Racal
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 482 x 267 x 510 mm / 19 x 10.5 x 20.1 inch
Notes General coverage receiver 980 - 30000 kHz, AM, SSB (BFO).
IF bandwidths 0,1 / 0,3 / 1,2 / 3 / 6,5 / 13 kHz (-6dB), linear analog readout 1 kHz. 100 kHz calibrator.
Export version of the RA17 Mk III for the North American market using American tubes and connectors, S-calibrated meter and hoher audio output.
Some tubes are partly several times present, find more informations below.
US military designation AN/URR-501A.
Net weight (2.2 lb = 1 kg) 30.5 kg / 67 lb 2.9 oz (67.181 lb)
Source of data Shortwave Receivers - Past & Present (3rd ed.)
Mentioned in Racal Handbook, Rinus Jansen

Model page created by Martin Bösch. See "Data change" for further contributors.
