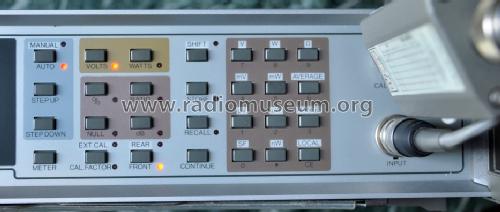

Racal-Dana True RMS RF Level Meter 9303

Racal-Dana True RMS RF Level Meter 9303; Racal Engineering (ID = 1372228) Equipment Racal-Dana True RMS RF Level Meter 9303; Racal Engineering (ID = 1372229) Equipment
Racal-Dana True RMS RF Level Meter 9303; Racal Engineering (ID = 1372230) Equipment Racal-Dana True RMS RF Level Meter 9303; Racal Engineering (ID = 1372231) Equipment
Racal-Dana True RMS RF Level Meter 9303; Racal Engineering (ID = 1372240) Equipment Racal-Dana True RMS RF Level Meter 9303; Racal Engineering (ID = 1372241) Equipment
Use red slider bar for more.
Racal-Dana True RMS RF Level Meter 9303; Racal Engineering (ID = 1372228) Equipment
Racal Engineering: Racal-Dana True RMS RF Level Meter 9303 [Equipment] ID = 1372228 933x231
Select picture or schematic to display from thumbnails on the right and click for download.
For model Racal-Dana True RMS RF Level Meter 9303, Racal Engineering (Racal Instruments) Ltd., Bracknell

Country:  Great Britain (UK)
Manufacturer / Brand:  Racal Engineering (Racal Instruments) Ltd., Bracknell
Year: 1992 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 90-110; 193-237 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Racal-Dana True RMS RF Level Meter 9303 - Racal Engineering Racal
Material Various materials
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 440 x 104 x 403 mm / 17.3 x 4.1 x 15.9 inch
Notes

The Racal-Dana RF Level Meter Model 9303 is a microprocessor controlled
instrument making signal level measurements in the frequency range
from 10 kHz to 2 GHz, between 30 µV and 3,162 V.
The instrument has autocalibration facility and a built-in calibration signal source.
Measurements are made via a sensing head Racal-Dana 11-1478, paired as PN with the instrument.

Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Source of data - - Manufacturers Literature

Model page created by Antonio Marra. See "Data change" for further contributors.
