Synthesised Signal Generator 9081

Synthesised Signal Generator 9081; Racal Engineering (ID = 1643729) Equipment Synthesised Signal Generator 9081; Racal Engineering (ID = 1645081) Equipment
Synthesised Signal Generator 9081; Racal Engineering (ID = 1649810) Equipment Synthesised Signal Generator 9081; Racal Engineering (ID = 1649811) Equipment
Synthesised Signal Generator 9081; Racal Engineering (ID = 1649812) Equipment Synthesised Signal Generator 9081; Racal Engineering (ID = 1649813) Equipment
Synthesised Signal Generator 9081; Racal Engineering (ID = 1650197) Equipment Synthesised Signal Generator 9081; Racal Engineering (ID = 1650199) Equipment

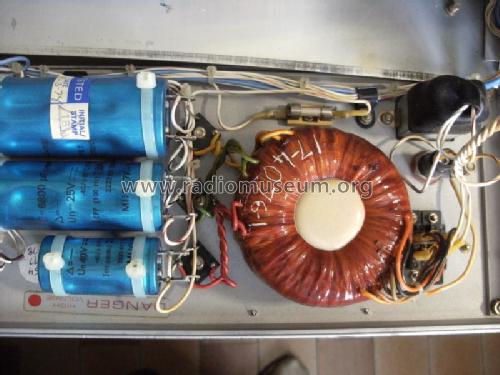

Synthesised Signal Generator 9081; Racal Engineering (ID = 1650200) Equipment Synthesised Signal Generator 9081; Racal Engineering (ID = 1650203) Equipment
Use red slider bar for more.
Synthesised Signal Generator 9081; Racal Engineering (ID = 1643729) Equipment
Racal Engineering: Synthesised Signal Generator 9081 [Equipment] ID = 1643729 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Synthesised Signal Generator 9081, Racal Engineering (Racal Instruments) Ltd., Bracknell:
Ebay 291125320801

Country:  Great Britain (UK)
Manufacturer / Brand:  Racal Engineering (Racal Instruments) Ltd., Bracknell
Year: 1977/1978 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 94-100; 110-130; 188-220; 220-260 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Synthesised Signal Generator 9081 - Racal Engineering Racal
Material Metal case
Shape Rack
Dimensions (WHD) 420 x 133 x 445 mm / 16.5 x 5.2 x 17.5 inch
Notes Frequency 5-520 MHz in 5 ranges. Output +16 dBm to -140 dBm into 50 ohm. Modulation AM, FM, Phase M and mixed AM with FM or Phase M.
Suffix H models add 10 dBm to output level.
(The 9082 model extends the lower frequency to 1.5 MHz)
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) Funkschau (12/1977, S. 519 Hannover-Messe 77)

Model page created by Roy Johnson. See "Data change" for further contributors.
