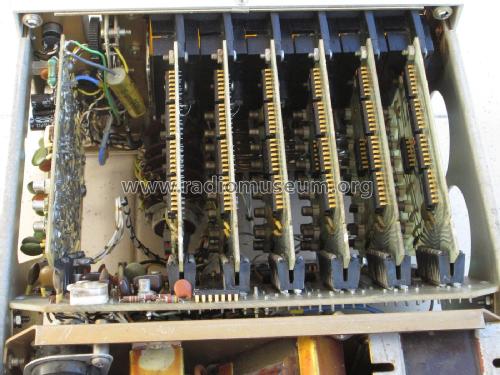

For model Universal Counter 835, Racal Engineering (Racal Instruments) Ltd., Bracknell:
Racal - Universal Counter 835 - front/side view

Country:  Great Britain (UK)
Manufacturer / Brand:  Racal Engineering (Racal Instruments) Ltd., Bracknell
Year: 1967 ? Category: Service- or Lab Equipment
Valves / Tubes 6: GN6A
Semiconductors (the count is only for transistors) 83:
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 200; 220; 240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Universal Counter 835 - Racal Engineering Racal
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 219 x 133 x 280 mm / 8.6 x 5.2 x 11 inch
Notes

Measure Functions: Frequency, Period, Period Averaged, Time Interval, Time Ratio;
Frequency Range: 10 Hz - 12.5 MHz (AC),  0 - 5 MHz (DC);
Signal Range: 75 mV - 150 V rms (AC),  +2 V to +-15 V (DC);
Impedance: 100 kOhm (AC), 10 kOhm (DC);
Gate Times: 1 uS to 10 S in decade steps;
Frequency Standard: 1 MHz Crystal Oven, stability better than 1 ppm;



Net weight (2.2 lb = 1 kg) 6.4 kg / 14 lb 1.6 oz (14.097 lb)
Price in first year of sale 242.00 GBP
Mentioned in Wireless Magazine (Advertisement on "Wireless World" June 1968 issue)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Augusto Leonardi. See "Data change" for further contributors.
