A 501

A 501; Racson, Paris (ID = 2038830) Radio A 501; Racson, Paris (ID = 2048158) Radio
Use red slider bar for more.

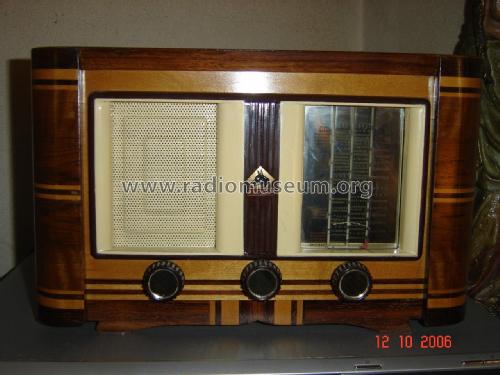

A 501; Racson, Paris (ID = 2038830) Radio
Racson, Paris: A 501 [Radio] ID = 2038830 1280x960
Select picture or schematic to display from thumbnails on the right and click for download.
For model A 501, Racson, Paris

Country:  France
Manufacturer / Brand:  Racson, Paris
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BE8 6BA6 6AV6 6AQ5 6X4
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet. / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: A 501 - Racson, Paris
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 315 x 205 x 175 mm / 12.4 x 8.1 x 6.9 inch
Net weight (2.2 lb = 1 kg) 4.3 kg / 9 lb 7.5 oz (9.471 lb)

Model page created by Pierre Devaux. See "Data change" for further contributors.



All listed radios etc. from Racson, Paris
Here you find 5 models, 5 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
