Inconnu - unknown 1

Inconnu - unknown 1 ; Racson, Paris (ID = 1961951) Radio Inconnu - unknown 1 ; Racson, Paris (ID = 1961953) Radio
Inconnu - unknown 1 ; Racson, Paris (ID = 1961957) Radio Inconnu - unknown 1 ; Racson, Paris (ID = 1961959) Radio
Inconnu - unknown 1 ; Racson, Paris (ID = 1961962) Radio Inconnu - unknown 1 ; Racson, Paris (ID = 1961963) Radio
Inconnu - unknown 1 ; Racson, Paris (ID = 1961964) Radio Inconnu - unknown 1 ; Racson, Paris (ID = 1962164) Radio
Inconnu - unknown 1 ; Racson, Paris (ID = 1962165) Radio
Use red slider bar for more.

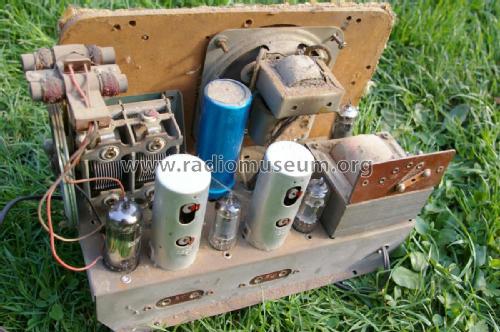

Inconnu - unknown 1 ; Racson, Paris (ID = 1961951) Radio
Racson, Paris: Inconnu - unknown 1 [Radio] ID = 1961951 1000x609
Select picture or schematic to display from thumbnails on the right and click for download.
For model Inconnu - unknown 1, Racson, Paris

Country:  France
Manufacturer / Brand:  Racson, Paris
Year: 1954 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 6BA6 6AV6 6BM5 6X4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: Inconnu - unknown 1 - Racson, Paris
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 330 x 200 x 180 mm / 13 x 7.9 x 7.1 inch
Net weight (2.2 lb = 1 kg) 4.4 kg / 9 lb 11.1 oz (9.692 lb)

Model page created by Jean-Pierre Ambroise. See "Data change" for further contributors.



All listed radios etc. from Racson, Paris
Here you find 5 models, 5 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
