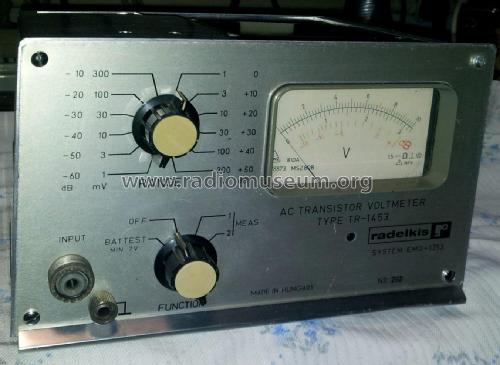

A.C. Transistor Voltmeter 1353 - TR-1453

A.C. Transistor Voltmeter 1353 - TR-1453; Radelkis Ktsz.; (ID = 2112883) Equipment A.C. Transistor Voltmeter 1353 - TR-1453; Radelkis Ktsz.; (ID = 1094347) Equipment
A.C. Transistor Voltmeter 1353 - TR-1453; Radelkis Ktsz.; (ID = 1094348) Equipment A.C. Transistor Voltmeter 1353 - TR-1453; Radelkis Ktsz.; (ID = 1094349) Equipment
A.C. Transistor Voltmeter 1353 - TR-1453; Radelkis Ktsz.; (ID = 1094350) Equipment A.C. Transistor Voltmeter 1353 - TR-1453; Radelkis Ktsz.; (ID = 1094352) Equipment
Use red slider bar for more.
A.C. Transistor Voltmeter 1353 - TR-1453; Radelkis Ktsz.; (ID = 2112883) Equipment
Radelkis Ktsz.;: A.C. Transistor Voltmeter 1353 - TR-1453 [Equipment] ID = 2112883 1400x983
Select picture or schematic to display from thumbnails on the right and click for download.
For model A.C. Transistor Voltmeter 1353 - TR-1453, Radelkis Ktsz.; Budapest:
Thanks for the photos, Mr. János Romhányi!

Country:  Hungary
Manufacturer / Brand:  Radelkis Ktsz.; Budapest
Year: 1968/1969 Category: Service- or Lab Equipment
Wave bands - without
Details
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: A.C. Transistor Voltmeter 1353 - TR-1453 - Radelkis Ktsz.; Budapest
Material Metal case
Shape Tablemodel, slant panel.
Dimensions (WHD) 180 x 165 x 110 mm / 7.1 x 6.5 x 4.3 inch
Notes 100 mikroV - 300 V +/-3%, 1Hz - 1 MHz.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Literature/Schematics (1) EMG Katalog 1967.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
