Fox 57
Use red slider bar for more.

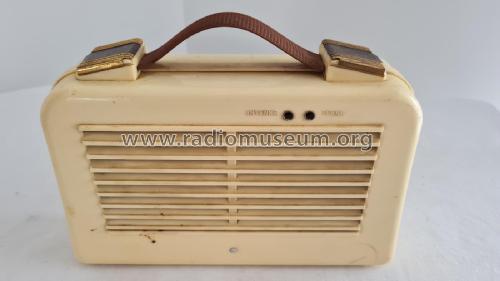

Radialva, Véchambre: Fox 57 [Radio] ID = 2549178 1400x951
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1956/1957 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 4: DK96 DF96 DAF96 DL96 |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |

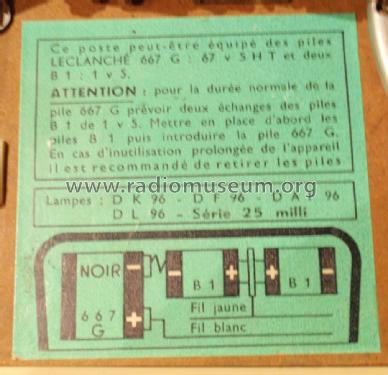

| Power type and voltage | Storage and/or dry batteries / 2 x 1,5 & 67,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch |
| Power out | |
| from Radiomuseum.org | Model: Fox 57 - Radialva, Véchambre Frères; |
| Material | Plastics (no bakelite or catalin) |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 240 x 160 x 65 mm / 9.4 x 6.3 x 2.6 inch |
| Notes | Cadre incorporé ferroxcube. Prises pour antenne télescopique adatable et terre. Coffret polystyrène, en ivoire ou aubergine. |
| Net weight (2.2 lb = 1 kg) | 1.150 kg / 2 lb 8.5 oz (2.533 lb) |
| Price in first year of sale | 14'700.00 FRF |
| Mentioned in | -- Original prospect or advert |
Model page created by Lucio Pedro Prieto Ramos. See "Data change" for further contributors.
All listed radios etc. from Radialva, Véchambre Frères; Asnières, Courbevoie, Saint-Denis
Here you find 188 models, 152 with images and 60 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
Collection of a member from E
