• Country
• France

• Manufacturer / Brand
• Radialva, Véchambre Frères; Asnières, Courbevoie, Saint-Denis

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70999

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12AJ8 12BA6 12AV6 50B5 35W4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• AC/DC-set / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• from Radiomuseum.org
• Model: Super-As 55 [export] - Radialva, Véchambre Frères;

• Dimensions (WHD)
• 290 x 160 x 190 mm / 11.4 x 6.3 x 7.5 inch

• Notes

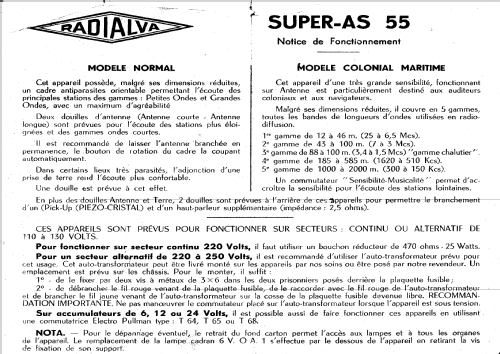

• Existe en version Colonial_Maritime avec 3 OC ((12 à 46m; 43 à 100m; 88 à 200m), H.P de 10x14cm, cadre orientable incorporé, poste tous courants.

• External source of data
• Serge Laffont/Martin Renoth

• Literature/Schematics (1)
• Radio Constructeur et Dépanneur 1955,

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
