Super-Clips 53 version européen

Super-Clips 53; Radialva, Véchambre (ID = 239033) Radio
Super-Clips 53; Radialva, Véchambre (ID = 105414) Radio Super-Clips 53; Radialva, Véchambre (ID = 429034) Radio
Super-Clips 53; Radialva, Véchambre (ID = 429035) Radio Super-Clips 53; Radialva, Véchambre (ID = 429036) Radio
Super-Clips 53; Radialva, Véchambre (ID = 354336) Radio Super-Clips 53; Radialva, Véchambre (ID = 1280747) Radio
Super-Clips 53; Radialva, Véchambre (ID = 1303308) Radio Super-Clips 53; Radialva, Véchambre (ID = 1475677) Radio
Super-Clips 53; Radialva, Véchambre (ID = 1838633) Radio
Use red slider bar for more.

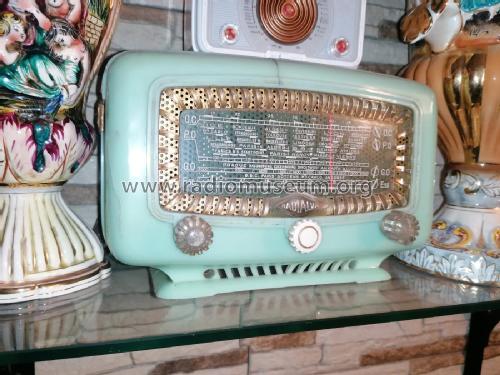

Super-Clips 53; Radialva, Véchambre (ID = 105414) Radio
Radialva, Véchambre: Super-Clips 53 [Radio] ID = 105414 364x244
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super-Clips 53 version européen, Radialva, Véchambre Frères; Asnières, Courbevoie, Saint-Denis

Country:  France
Manufacturer / Brand:  Radialva, Véchambre Frères; Asnières, Courbevoie, Saint-Denis
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50B5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Super-Clips 53 [version européen] - Radialva, Véchambre Frères;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 220 x 135 x 90 mm / 8.7 x 5.3 x 3.5 inch
Notes Dial lamp: 6,3V/0,1A.
External source of data Serge Laffont/Martin Renoth


All listed radios etc. from Radialva, Véchambre Frères; Asnières, Courbevoie, Saint-Denis
Here you find 188 models, 158 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
