FM-AM Tuner RC-10
Radio Craftsmen Inc., The; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Craftsmen Inc., The; Chicago (IL)
- Year
- 1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 52437

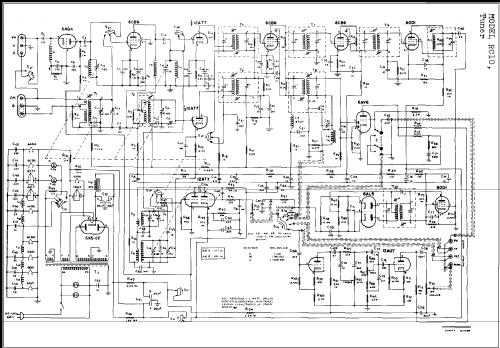

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: FM-AM Tuner RC-10 - Radio Craftsmen Inc., The;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 13.5 x 9.5 x 7 inch / 343 x 241 x 178 mm
- Notes
-
Tuner & Pre-amplifier, mono.
- Price in first year of sale
- 132.00 $
- Circuit diagram reference
- Rider's Perpetual, Volume 21, Copyright 1950
- Literature/Schematics (1)
- 1951 Newark catalog Nº 51
- Author
- Model page created by Peter Rutishauser. See "Data change" for further contributors.
