For model FM Broadcast Technical Purpose Receiver REL 646, Radio Engineering Labs. (REL); Long Island City (NY):
aus ebay, #154248063743, Verkäufer otsonline

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Engineering Labs. (REL); Long Island City (NY)
Year: 1947 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 12: 7F8 7F8 7AG7 7AG7 7AG7 7AG7 7A6 7AG7 7F7 7C5 7C5 5U4G
Main principle Superhet with RF-stage; ZF/IF 10700 kHz
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker - This model requires external speaker(s).
Power out 10 W (unknown quality)
from Radiomuseum.org Model: FM Broadcast Technical Purpose Receiver REL 646 - Radio Engineering Labs. REL;
Material Metal case
Shape Tablemodel, low profile (big size).
Notes Band 1: 88 to 108 mc
Band 2: 44 to 50 mc.

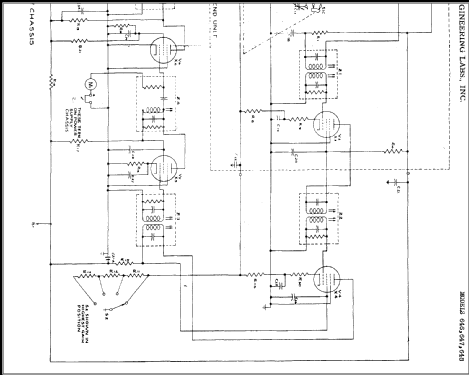

Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before

Model page created by Peter Rutishauser. See "Data change" for further contributors.
