- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Engineering Labs. (REL); Long Island City (NY)
- Year
- 1952 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 52470
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- from Radiomuseum.org
- Model: 647B - Radio Engineering Labs. REL;

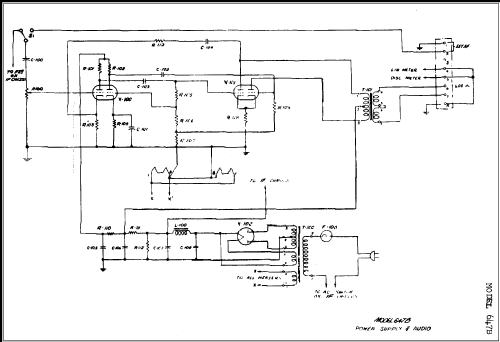

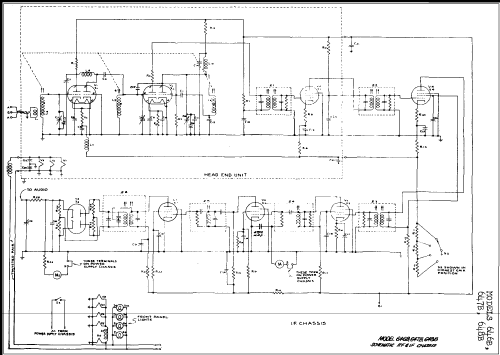

- Circuit diagram reference
- Rider's Perpetual, Volume 20 covering 1950
- Author
- Model page created by Peter Rutishauser. See "Data change" for further contributors.
