High Frequency Receiver HF-30X

Radio Mfg. Engineers, Inc. (RME); Peoria, IL

  • Year
  • 1940
  • Category
  • Amateur-Receiver (amateur bands, may include broadcast bands)
  • Radiomuseum.org ID
  • 116405

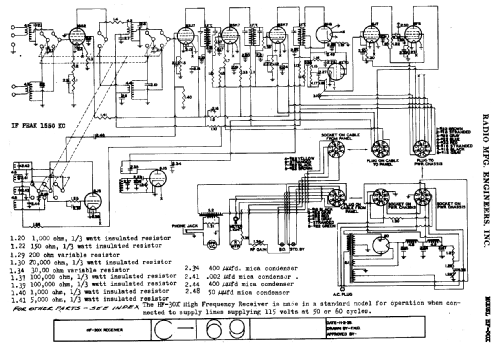

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 11
  • Valves / Tubes
  • Main principle
  • Superhet with RF-stage; ZF/IF 1550 kHz
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: High Frequency Receiver HF-30X - Radio Mfg. Engineers, Inc. RME
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • Amateur receiver covering 27.8 to 41 and 41 to 60,5 MHz.
  • Circuit diagram reference
  • Rider's Perpetual, Volume 12 = ca. 1941 and before
  • Author
  • Model page created by Martin Bösch. See "Data change" for further contributors.
